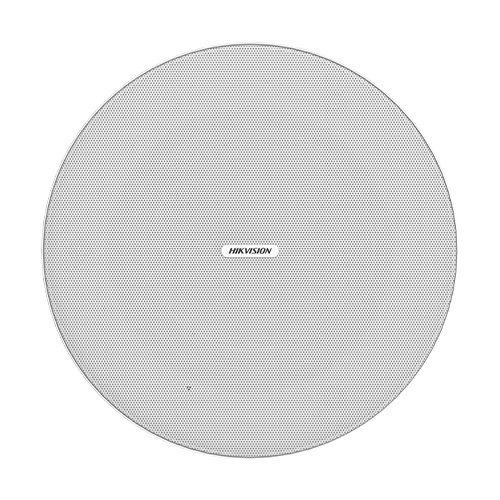

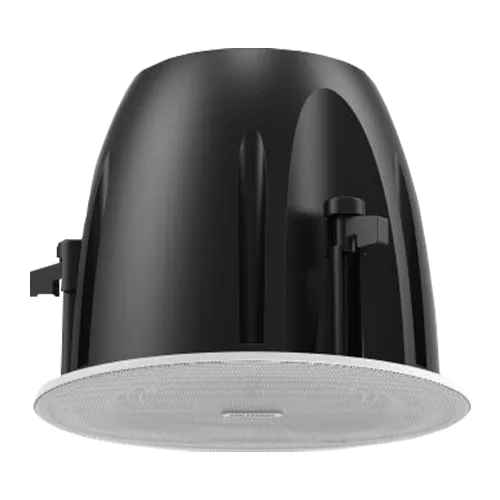

Difuzor IP, 10W, Bluetooth, PoE, montare tavan - HIKVISION
Difuzor IP, 10W, Bluetooth, PoE, montare tavan - HIKVISION

Difuzor IP, 10W, Bluetooth, PoE, montare tavan - HIKVISION
DS-QAZ1610G1-BE

Autentificate pentru pret
login

 Difuzorul IP, DS-QAZ1610G1-BE de la Hikvision are urmatoarele caracteristici:

  • 1 tweeter de 1,0 inch si 1 woofer de 6,5 inch
  • Putere nominala: 10W
  • 89dB Sensibilitate nominala
  • 98dB@1m SPL maxim nominal
  • Latime de banda 120 Hz - 20kHz
  • protocol: ISAPI, ISUP, SIP
  • Alb sau negru



  • Producator HIKVISION
  • Putere maxima 10W
  • Impedanta nominala 8 Ohm
  • Sensibilitate(1m, 1W) 89 dB
  • Frecventa de raspuns 100 Hz to 10 kHz(microfon) - 120Hz~20kHz(-10dB)(difuzor)
  • Protocol retea IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP
  • Format fisier audio G.711 ulaw 64 Kbps / G.711alaw 64 Kbps /MP3 128 Kbps
  • Algoritm audio AEC, AGC, ANS, DRC
  • Audio Interfata audio de 3,5 mm × 1
  • Interfata retea RJ45 10 M/100 M port Ethernet adaptiv × 1
  • Alarma 1 x IN
  • Stocare EMMC incorporat de 64 GB (stocarea fisierelor audio este de 55 GB.)
  • Bluetooth Bluetooth 5.0, 10 m
  • Material Corp: Policarbonat Baza: ABS
  • Temperatura functionare -10°C ~ 45°C
  • Alimentare 24 VDC ± 10%, 2,5 A, max. 60 W, PoE: 50 V pana la 57 V, 0 A pana la 1,6 A, max. 71 W
  • Greutate(cu cutie) Aprox. 2.7 kg
  • Dimensiuni Ø242.78 mm × 192.7 mm

Documente si programe

Nume Fisier
Fisa tehnica_Difuzor-IP,-10W,-Bluetooth,-PoE,-montare-tavan---HIKVISION Fisa tehnica_Difuzor-IP,-10W,-Bluetooth,-PoE,-montare-tavan---HIKVISION_12203.pdf Download
Manual de utilizare_Difuzor-IP,-10W,-Bluetooth,-PoE,-montare-tavan---HIKVISION Manual de utilizare_Difuzor-IP,-10W,-Bluetooth,-PoE,-montare-tavan---HIKVISION_12203.pdf Pentru download autentificati-va!
Declaratie de conformitate_Difuzor-IP,-10W,-Bluetooth,-PoE,-montare-tavan---HIKVISION Declaratie de conformitate_Difuzor-IP,-10W,-Bluetooth,-PoE,-montare-tavan---HIKVISION_12203.pdf Pentru download autentificati-va!
