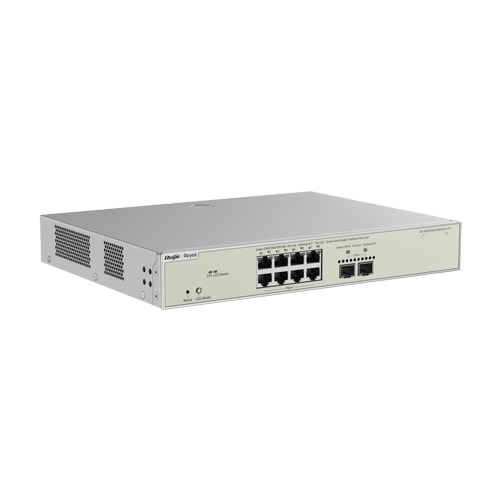

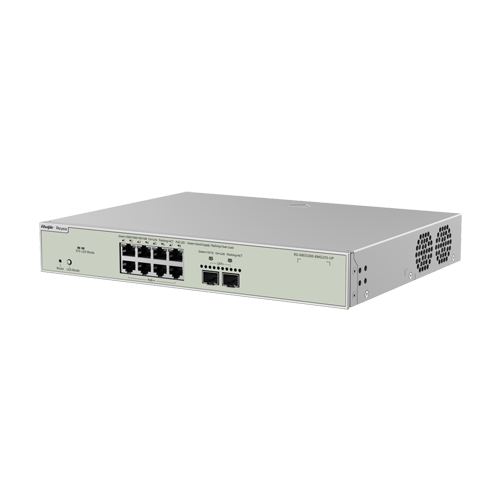

Switch L3, 8 x RJ45 2.5G PoE, 2 x SFP+ 10G, Cloud Management - Ruijie Reyee
RG-NBS5300-8MG2XS-UP

Autentificate pentru pret
login

Switch-ul de la Ruijie are urmatoarele caracteristici cheie:

  • Porturile de 2.5 Gbps depasesc bariera Gigabit si valorifica intregul potential al AP-urilor Wi-Fi 6;
  • 8 porturi PoE++ compatibile cu 802.3bt/at/af, cu o sursa totala de alimentare de 370W;
  • IP-MAC-Port Binding, ACL, Securitate Port, Aparare DoS, Storm control, DHCP Snooping, 802.1X, Autentificare Radius;
  • Management prin Ruijie Cloud, in orice moment si oriunde.
  • Producator Ruijie Reyee
  • Numar porturi PoE 8 x RJ45 2.5G
  • Porturi Uplink 2 x SFP+ 10G
  • Capacitate switch 80 Gbps
  • Packet Forwarding Rate 58.72 Mpps
  • MAC address table 16K
  • CPU single-core, 800MHz
  • Memorie flash 256 MB
  • Memorie RAM 512 MB
  • MTBF >400.000 ore
  • Putere PoE total 370W
  • Standard PoE IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
  • Tensiune alimentare 100 - 240V AC
  • Consum max. 450W
  • Protectie supratensiune 6kV
  • Temperatura operare 0°C ~ +50°C
  • Dimensiuni 300 mm x 233 mm x 43.6 mm
  • Greutate 2500 g

Documente si programe

Nume Fisier
Specificatii tehnice producator (EN)_RG-NBS5300-8MG2XS-UP Specificatii tehnice producator (EN)_RG-NBS5300-8MG2XS-UP_15189.pdf Download
Manual scurt de instalare (EN)_RG-NBS5300-8MG2XS-UP Manual scurt de instalare (EN)_RG-NBS5300-8MG2XS-UP_15189.pdf Download
Manual de instalare si configurare (EN)_RG-NBS5300-8MG2XS-UP Manual de instalare si configurare (EN)_RG-NBS5300-8MG2XS-UP_15189.pdf Pentru download autentificati-va!
Certificat de conformitate (EN)_RG-NBS5300-8MG2XS-UP Certificat de conformitate (EN)_RG-NBS5300-8MG2XS-UP_15189.pdf Pentru download autentificati-va!
