Camera analog, 5MP, ColorHunter, letila 2.8mm, IR 40m, WL 40m, Mic - UNV
Camera analog, 5MP, ColorHunter, letila 2.8mm, IR 40m, WL 40m, Mic - UNV
Camera analog, 5MP, ColorHunter, letila 2.8mm, IR 40m, WL 40m, Mic - UNV

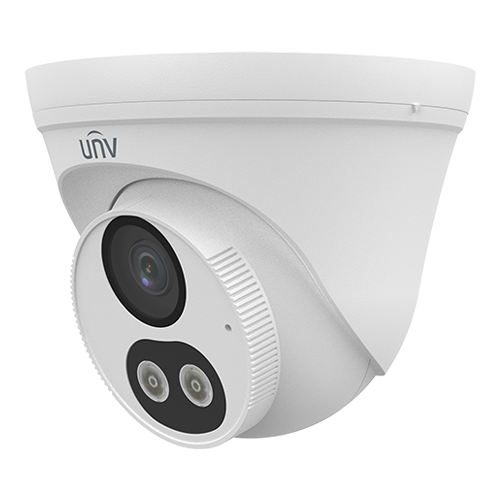

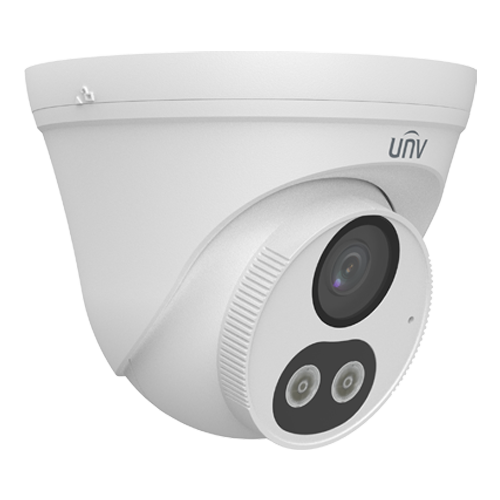

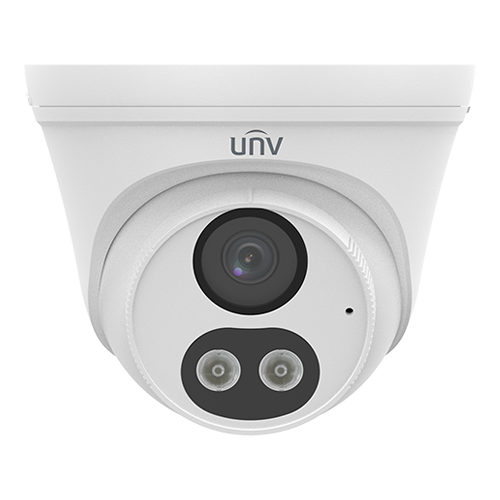

Camera AnalogHD ColorHunter, 5MP, lentila 2.8mm, Smart Dual-Light IR/ WL 40m, Mic. - UNV
UAC-T145-AF28LM-DL

Autentificate pentru pret
login

UAC-T145-AF28LM-DL este o camera analogHD tip Bullet din seria ColorHunter de la Uniview cu urmatoarele caracteristici:

  • Rezolutie 5MP
  • Semnal video TVI/AHD/CVI/CVBS
  • Imagini color in conditii de iluminare scazuta cu ajutorul tehnologiei ColourHunter, avand WL pana la 40 metri
  • Smart Dual Light, IR si lumina alba de pana la 40m
  • microfon incorporat, audio over coaxial TVI/CVI
  • WDR digital
  • Protectie IP67
  • Model / producator UNV (Uniview)
  • Senzor 1/2.7" CMOS 5.0 megapixel
  • Rezolutie 5MP(2592 x 1944)/5MP(2880 x 1620)/4MP/1080P Max.30fps
  • Lentila 2.8mm, unghi vizualizare 110°
  • Iluminare minima 0.005 lux (F1.6, AGC ON) ,0 Lux
  • Distanta Lumina Alba 40 metri
  • Distanta IR 40 metri, IR-CUT filter cu AUTO-switch
  • WDR DWDR
  • Semanl video TVI/AHD/CVI/CVBS
  • Audio microfon incorporat, audio over coaxial TVI/CVI
  • Alimentare 12 V DC ± 25%
  • Consum max. 3.5W
  • Temperatura de operare -30°C ~ +60°C, IP67
  • Protectie la descarcari electrice 4KV
  • Dimensiuni Ø117.8mm x 96.5mm
  • Greutate 239 gr.
  • Material Metal si plastic

Documente si programe

Nume Fisier
Specificatii tehnice UAC-T145-AF28LM-DL Specificatii tehnice UAC-T145-AF28LM-DL.pdf Download
Manual configurare si operare UAC-T145-AF28LM-DL_V1.01-EN Manual configurare si operare UAC-T145-AF28LM-DL_V1.01-EN.pdf Pentru download autentificati-va!
Certificat de conformitate UAC-T145-AF28LM-DL Certificat de conformitate UAC-T145-AF28LM-DL.pdf Pentru download autentificati-va!
Certificat de conformitate LVD UAC-T145-AF28LM-DL Certificat de conformitate LVD UAC-T145-AF28LM-DL.pdf Pentru download autentificati-va!
