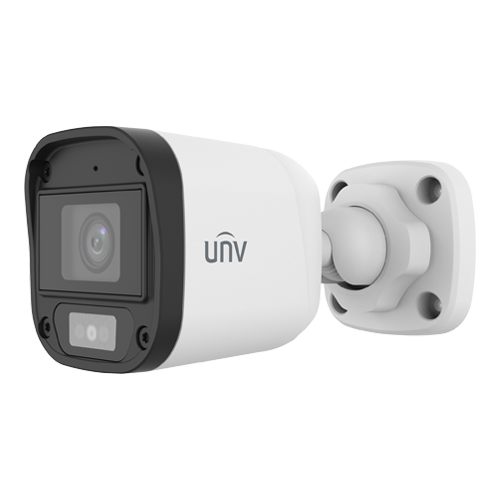

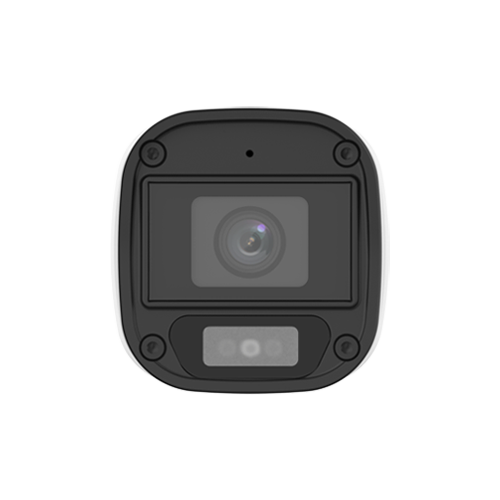

Camera Analog ColorHunter, Dual Light, 5MP, lentila 2.8mm, IR 20m, WL 20m, Mic, IP67 - UNV
Camera Analog ColorHunter, Dual Light, 5MP, lentila 2.8mm, IR 20m, WL 20m, Mic, IP67 - UNV
Camera Analog ColorHunter, Dual Light, 5MP, lentila 2.8mm, IR 20m, WL 20m, Mic, IP67 - UNV

Camera Analog ColorHunter, Dual Light, 5MP, lentila 2.8mm, IR 20m, WL 20m, Mic, IP67 - UNV
UAC-B115-AF28-DL

Autentificate pentru pret
login

Camera Analog din seria ColorHunter de la Uniview avand urmatoarele caracteristici:

  • Calitate video superioara - Rezolutiei de 5 MP;
  • Imagini color 24/7 datorita tehnologiei ColorHunter si WL;
  • Microfon de inalta fidelitate integrat, compatibil cu tehnologa "Audio over Coaxial" TVI si CVI;
  • Semnal video TVI/AHD/CVI/CVBS;
  • Constructie robusta - rezistenta la apa si praf (IP67).
  • Model / producator UNV (Uniview)
  • Senzor 1/2.7", 5.0 megapixel
  • Rezolutie 5MP(2880 x 1620)@25fps, 4MP/1080P
  • Lentila 2.8mm, unghi vizualizare 110°
  • Iluminare minima 0.005 lux (F1.6, AGC ON) ,0 Lux
  • Distanta WL 20 metri
  • Distanta IR 20 metri
  • WDR Digital
  • Semnal video TVI/AHD/CVI/CVBS
  • Audio Microfon integrat, "Audio over coaxial" compatibil TVI/CVI
  • Alimentare 12 V DC ± 25%
  • Consum max. 3W
  • Temperatura de operare -30°C ~ +60°C, IP67
  • Protectie la descarcari electrice 4KV
  • Dimensiuni 140mm x 61mm x 65mm
  • Greutate 150 g.
  • Material Plastic

Documente si programe

Nume Fisier
Specificatii tehnice UAC-B115-AF28-DL Specificatii tehnice UAC-B115-AF28-DL.pdf Download
Ghid Rapid UAC-B115-AF28-DL Ghid Rapid UAC-B115-AF28-DL.pdf Download
Manual de utilizare UAC-B115-AF28-DL Manual de utilizare UAC-B115-AF28-DL.pdf Pentru download autentificati-va!
Certificat de conformitate EMC UAC-B115-AF28-DL Certificat de conformitate EMC UAC-B115-AF28-DL.pdf Pentru download autentificati-va!
Certificat de conformitate LVD UAC-B115-AF28-DL Certificat de conformitate LVD UAC-B115-AF28-DL.pdf Pentru download autentificati-va!
