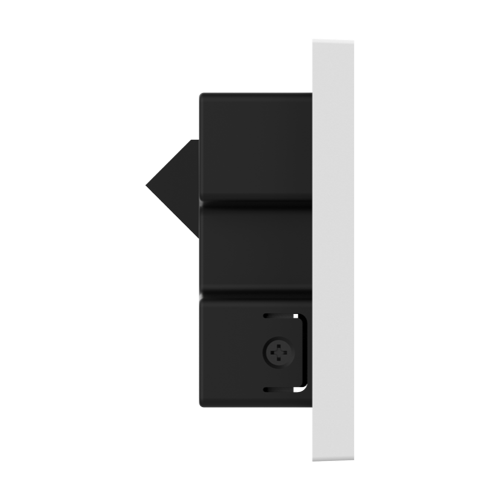

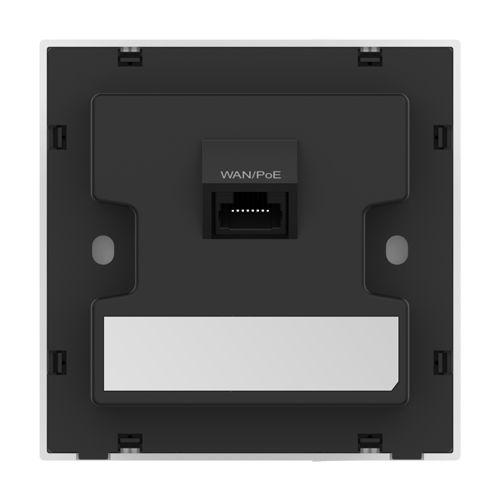

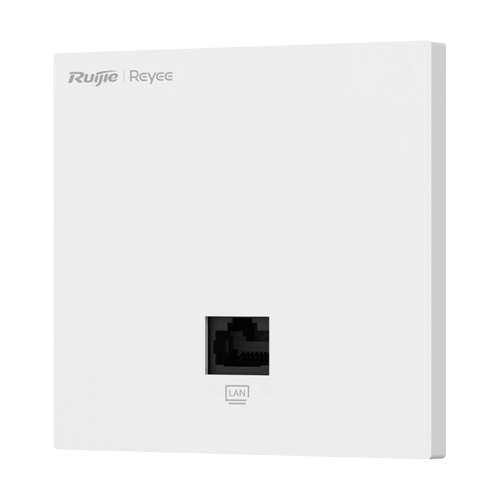

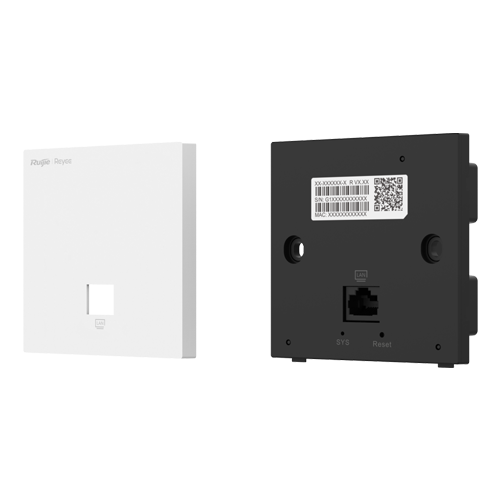

Acces Point Wi-Fi 5, 2x2 MIMO, 2 x RJ45 1G, PoE/PoE+ In, Cloud Management - Ruijie Reyee
Acces Point Wi-Fi 5, 2x2 MIMO, 2 x RJ45 1G, PoE/PoE+ In, Cloud Management - Ruijie Reyee
Acces Point Wi-Fi 5, 2x2 MIMO, 2 x RJ45 1G, PoE/PoE+ In, Cloud Management - Ruijie Reyee
Acces Point Wi-Fi 5, 2x2 MIMO, 2 x RJ45 1G, PoE/PoE+ In, Cloud Management - Ruijie Reyee
Acces Point Wi-Fi 5, 2x2 MIMO, 2 x RJ45 1G, PoE/PoE+ In, Cloud Management - Ruijie Reyee

Acces Point Wi-Fi 5, 2x2 MIMO, 2 x RJ45 1G, PoE/PoE+ In, Cloud Management - Ruijie Reyee
RG-RAP1201

Autentificate pentru pret
login

Access point Ruijie Reyee RG-RAP1201, de tip wall-mounted, cu Wi-Fi 5 dual-band si viteza wireless maxima combinata de 1266 Mbps. Este alimentat prin PoE/PoE+ si dispune de 2 porturi RJ45 Gigabit. Designul compact (86 x 86 mm) permite montarea directa in doza de perete standard, oferind o solutie discreta pentru acoperire Wi-Fi in camere sau spatii mici.

Caracteristici cheie

  • Wi-Fi dual-band 2.4GHz + 5GHz, standard 802.11a/b/g/n/ac;
  • Design dual-radio, 4 fluxuri spatiale, MIMO 2x2 pe fiecare banda (2.4GHz si 5GHz), Wave2;
  • Alimentare PoE/PoE+ (IEEE 802.3af/at), fara adaptor de alimentare inclus;
  • Design compact 86x86mm, montaj in doza de perete (europeana/US);
  • Management prin Ruijie Cloud, aplicatie eWeb sau Ruijie Reyee App;
  • Functie WIO (WiFi Intelligent Optimization) pentru optimizare cu un singur click;
  • Suport SON (Self-organizing Network) pentru configurare rapida a retelei;
  • Rating IP41, MTBF peste 400.000 ore.
  • Producator Ruijie
  • Frecventa 2.4GHz, 5GHz
  • Standard Wi-Fi 802.11a/b/g/n/ac
  • Viteza transmisie 2.4GHz: 400 Mbps; 5GHz: 866 Mbps
  • Memorie flash 8 MB
  • Memorie RAM 128 MB DDR3
  • Antena 2.4GHz: 3.82 dBi; 5GHz: 4.10 dBi
  • Putere transmisie Max. 21 dBm
  • Interfata 2 x RJ45 1 Gbps
  • MTBF > 400.000 ore
  • Management Cloud APP/Web
  • Tensiune alimentare IEEE 802.3af/at PoE
  • Consum Max. 9W
  • Dimensiuni 86 mm x 86 mm x 42.4 mm
  • Greutate 160 g
  • Temperatura de functionare 0°C ~ +40°C, IP41
  • Montaj In doza de perete

Documente si programe

Nume Fisier
Specificatii tehnice producator (EN)_RG-RAP1201_21725 Specificatii tehnice producator (EN)_RG-RAP1201_21725.pdf Download
Manual scurt de instalare (EN)_RG-RAP1201_21725 Manual scurt de instalare (EN)_RG-RAP1201_21725.pdf Download
Manual de instalare (EN)_RG-RAP1201_21725 Manual de instalare (EN)_RG-RAP1201_21725.pdf Pentru download autentificati-va!
Manual de configurare (EN)_RG-RAP1201_21725 Manual de configurare (EN)_RG-RAP1201_21725.pdf Pentru download autentificati-va!
Declaratie de conformitate (EN)_RG-RAP1201_21725 Declaratie de conformitate (EN)_RG-RAP1201_21725.pdf Pentru download autentificati-va!
Declaratie de conformitate PPWR (EN)_RG-RAP1201_21725 Declaratie de conformitate PPWR (EN)_RG-RAP1201_21725.pdf Pentru download autentificati-va!
